uPVC Conduits, Conduit Fittings and Accessories Type Tested to BS, BSEN, IEC Standards (IP Code) BSEN 60529:2004, BSEN 60670-1:2005, BSEN 61386-21:2004, BSEN 61386-1:2004, IEC 60529:1989, IEC 60670-1:2002, IEC 61386-21:2002 & IEC 61386-1:2008 Certified to ISO 9001:2008 and ISO 14001:2004 with BSI Test Certificates. |
Test Temperature |
-25C to +60C |
Operation Temperature |
-25C to +90C |
Making |
Non-Flame-Progagation Conduit may be of any colour except Yellow, Orange or Red |
Ingress Protection |
IP67 |
Rigid uPVC Conduits (Very Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-21 Suitable for Outdoor used (IP67) |
Size |
Cat. No. |
Pieces / Bundies |
|
20mm |
UP20 |
10 |
|
25mm |
UP25 |
10 |
|
32mm |
UP32 |
10 |
|
38mm |
UP38 |
5 |
|
50mm |
UP50 |
5 |
* Type tested to all of the following International Standards: |
BS, BSEN, IEC Standards (IP Code) |
BSEN 60529:2004 |
BSEN 60386-21:2004 |
IEC 60529:1989, |
IEC 61386-21:2002 |
Standard Length is 3.7 metres, Other Length Upon Request |
PVC Conduit Fittings & Accessories Type Tested to BS, BSEN & IEC Standards (IP Code) BSEN 60529:2004, BSEN 60670-1:2005, BSEN 61386-1:2004, IEC 60529:1989, IEC 60670-1:2002 & IEC 61386-1:2008 with BSI Test Certificates. |
PVC Coupler (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP67) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PC20 |
1000 |
25mm |
PC25 |
500 |
32mm |
PC32 |
300 |
38mm |
PC38 |
200 |
50mm |
PC50 |
100 |
PVC Coupler with Internal Thread c/w Male Bush (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54, IP67) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PCT20 |
1000 |
25mm |
PCT25 |
500 |
32mm |
PCT32 |
300 |
38mm |
PCT38 |
200 |
50mm |
PCT50 |
100 |
PVC Hexagonal Male Bush (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PB20H |
1000 |
25mm |
PB25H |
500 |
32mm |
PB32H |
300 |
38mm |
PB38H |
200 |
50mm |
PB50H |
100 |
Watertight PVC Male Bush with Rubber Washer (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP67) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
WPB20H |
400 |
25mm |
WPB25H |
200 |
32mm |
WPB32H |
100 |
PVC Hexagonal Locknut(Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP67) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PX20 |
1000 |
25mm |
PX25 |
500 |
32mm |
PX32 |
300 |
PVC Adaptor Male Thread (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PMA20 |
2000 |
PVC Adaptor Female Thread c/w Male Bush (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54, IP67) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PR20 |
1000 |
25mm |
PR25 |
500 |
32mm |
PR32 |
300 |
38mm |
PR38 |
200 |
50mm |
PR50 |
100 |
PVC Spacer-Bar Saddles with Screws (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PSB20 |
500 |
25mm |
PSB25 |
300 |
32mm |
PSB32 |
300 |
38mm |
PSB38 |
100 |
50mm |
PSB50 |
100 |
PVC Spring Clip Saddle (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PDS20 |
1000 |
25mm |
PDS25 |
500 |
32mm |
PDS32 |
300 |
PVC Extension Ring (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
38mm Deep |
PEXR |
100 |
For Indoor Applications the Enclosure shall have an Ingress Protection (IP) in Accordance with BSEN/IEC 60529, of at Least IP40, for Top Surface and IP30 for other Surface of the Enclosure, for Outdoor Applications the Enclosure shall be of at Least IP54. |
PVC Besa Deep Circular Box (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Indoor used (IP30) Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PH01 |
100 |
25mm |
PH01S |
100 |
20mm |
PH02 |
100 |
25mm |
PH02S |
100 |
20mm |
PH2A |
100 |
25mm |
PH2AS |
100 |
20mm |
PH03 |
100 |
25mm |
PH03S |
100 |
20mm |
PH04 |
100 |
25mm |
PH04S |
100 |
PVC Standard Circular Box (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Indoor used (IP30) Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PT01 |
100 |
25mm |
PT01S |
100 |
20mm |
PT02 |
100 |
25mm |
PT02S |
100 |
20mm |
PT2A |
100 |
25mm |
PT2AS |
100 |
20mm |
PT03 |
100 |
25mm |
PT03S |
100 |
20mm |
PT04 |
100 |
25mm |
PT04S |
100 |
PVC Looping-In Box (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PL04 |
100 |
BS 4662 PVC Switch & Socket Box 1-G & 2-G (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-22 Suitable for Indoor used (IP30) |
Size |
Cat. No. |
Qty/Box |
|
35mm Deep |
PK135 |
200 |
47mm Deep |
PK147 |
200 |
47mm Deep with 20/25 knockout |
PK147S |
200 |
47mm Deep |
PK247 |
100 |
BS 4662 PVC Switch / Socket Box (Heavy Gauge) 1-Gang & 2-Gang (Special Shape) BSEN/IEC 60529 and BSEN/IEC 60670-22 Suitable for Indoor used (IP30) |
Size |
Cat. No. |
Qty/Box |
|
41mm Deep 20mm Terminal |
PK141T |
100 |
25mm Terminal |
PK141S |
100 |
20mm Parallel |
PK141P |
100 |
20mm Angle |
PK141A |
100 |
20mm Y Shape |
PK141Y |
100 |
20mm Parallel |
PK241P |
60 |
PVC Adaptable Box without Cover (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Indoor used (IP30) Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
75x75x50mm |
PA75 |
60 |
100x100x50mm |
PA100 |
40 |
100x100x75mm |
PA100S |
40 |
150x150x75mm |
PA150 |
20 |
225x225x75mm |
PA225 |
10 |
300x300x75mm |
PA300 |
10 |
PVC Cover for Cir. & Adaptable Box c/w Brass or Stainless Steel Screws (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Indoor used (IP30) |
Size |
Cat. No. |
Qty/Box |
|
65mmØ |
PTC65 |
500 |
75x75mm |
PV75 |
200 |
100x100mm |
PV100 |
200 |
150x150mm |
PV150 |
100 |
225x225mm |
PV225 |
50 |
300x300mm |
PV300 |
30 |
|
86mmØ |
PTC86 |
500 |
>75x75mm |
PV75F |
200 |
>100x100mm |
PV100F |
200 |
>150x150mm |
PV150F |
100 |
>225x225mm |
PV225F |
50 |
>300x300mm |
PV300F |
30 |
PVC Watertight Cover for Cir. & Adaptable Box c/w Rubber Gasket, Brass or Stainless Steel Screws (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
65mmØ |
PWTC65 |
300 |
75x75mm |
PWT75 |
200 |
100x100mm |
PWT100 |
60 |
150x150mm |
PWT150 |
50 |
225x225mm |
PWT225 |
20 |
300x300mm |
PWT300 |
10 |

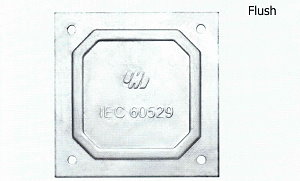

Watertight Steel Cover for PVC Cir. & Adaptable c/w Rubber Gasket, Brass or Stainless Steel Screws (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 60670-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
>86mmØ |
PWTC86 |
300 |
>75x75mm |
PWT75F |
100 |
>100x100mm |
PWT100F |
50 |
>150x150mm |
PWT150F |
20 |
>225x225mm |
PWT225F |
10 |
>300x300mm |
PWT300F |
10 |
BS 4662 Box PVC Extension Frame 1-G and 2-G BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22 Suitable for Indoor used (IP30) |
Size |
Cat. No. |
Qty/Box |
|
25mm Deep |
PEF-1G |
200 |
25mm Deep |
PEF-2G |
100 |
BS 4662 Box Blank Plate and Blank Plate with Outlet BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22 Suitable for Indoor used (IP30) |
Size |
Cat. No. |
Qty/Box |
|
86x86mm |
PBP-1G |
400 |
86x86mm |
PBP-1GOL |
400 |
BS 4662 Box Supporter BS 4662, BSEN/IEC 60529 and BSEN/IEC 60670-22 Suitable for Indoor used (IP30) |
Size |
Cat. No. |
Qty/Box |
|
70x70mm |
PK1GS |
1000 |
70x129mm |
PK2GS |
500 |
PVC Normal Bends (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP67) |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PNB20 |
40 |
25mm |
PNB25 |
30 |
32mm |
PNB32 |
20 |
38mm |
PNB38 |
10 |
50mm |
PNB50 |
10 |
Bending Springs BS, BSEN and IEC |
Size |
Cat. No. |
Qty/Box |
|
20mm |
PBS20 |
10 |
25mm |
PBS25 |
10 |
32mm |
PBS32 |
10 |
FUJI PVC Sealing Cement (500ml) with Applicator Brush BS, BSEN and IEC Suitable for Outdoor used (IP67) |
Cat. No. |
Qty/Box |
|
JWWA S101 |
20 |
Nylon Draw Wire BS, BSEN and IEC |
Cat. No. |
Qty/Box |
|
PDW15 (15 M) |
15 |
PDW30 (30 M) |
30 |
PVC Coupler (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP67) |
Size |
Cat. No. |
Qty/Box |
|
38mm |
DNC5 |
25 |
50mm |
DNC6 |
20 |
PVC Adaptors Female (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
38mm |
DFA5 |
20 |
50mm |
DFA6 |
20 |
PVC Hexagonal Male Bush (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
38mm |
DMB5 |
50 |
50mm |
DMB6 |
25 |
PVC Spacer-Bar Saddles with Screws (Heavy Gauge) BSEN/IEC 60529 and BSEN/IEC 61386-1 Suitable for Outdoor used (IP54) |
Size |
Cat. No. |
Qty/Box |
|
38mm |
DSB5 |
25 |
50mm |
DSB6 |
25 |

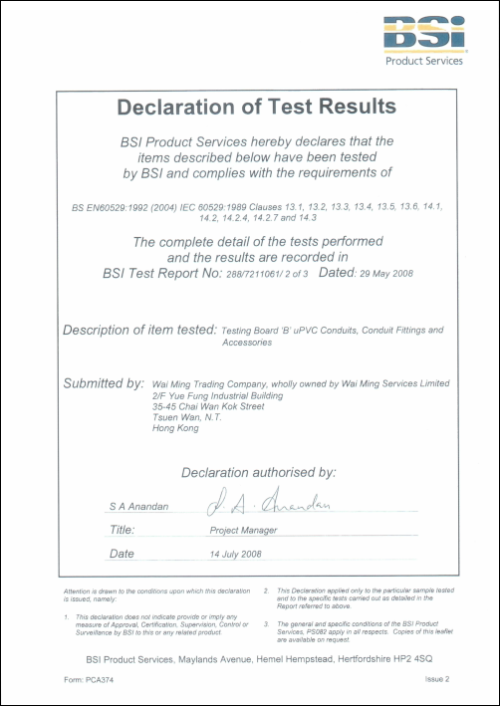

T1 - BSI Test Reports No. 288/7211061/2 of 3 Ingress of Protection (IP Code) |
T1 - BSI Test Reports No. 286/7286447/2 of 3 Ingress of Protection (IP Code) |
|
