WAI MING   DIECAST CABLE FIXING SYSTEM

All Products are Manufactured in Accordance with ISO 9001, ISO 14001, BS 18, BSEN ISO 1461, BSEN 60439-1 and BSEN/IEC 60529:2004 with Fault Level ASTA and BSI Test Certificates. Suitable for all Types of Cable (Single & Multi-core) and The Rated Voltage Level of Low Voltage, Medium Voltage and High Voltage.

ISO 9001:2008
Registration No.:00110Q28861R2M/4300

ISO 9001:2008
Certificate No.:00110Q28861R2M/4300
ISO 9001:2008
CERTIFICATE NO.FM 53776

ISO 14001:2004
Certificate No.:0010E21363R1M/4300


Recommended Spacing (for Trefoil Applications)
Cat No. Max. Fault Level kA in rms. Mulit-cleat Spacing (meters)
Peak RMS Horizontal & Vertical Runs Flat Bends & Risers
WMATC-41B 84kA 40kA 1.5m 0.3m
WMATC-59B 105kA 40kA 1.2m 0.3m



 ASTA Test Certificates to BSEN 60439-1:1999
 Diecast Aluminium Alloy Cable Hook Clamps


Test
Temperature		 -5C to +100C Operation
Temperature		 -25C to +135C Ingress
protection		 IP 67


"WAI MING"

Diecast Aluminium Alloy Hook Clamps can be used Single or Double Stacked for Vertical or Horizontal and Other Surfaces Mounting.

CAT. NO. Dimensions (mm) Suitable for
Single & Multi-core Cable
A B C D E
MIN. MAX. MAX.
WMALHC-17B 17 22 32 38 17 57 6mm² 4-core to 10mm² 4-core
WMALHC-24B 24 30 42 45 22 74 16mm² 4-core to 25mm² 4-core
WMALHC-31B 31 38 49 45 22 82 35mm² 4-core to 70mm² 4-core
WMALHC-39B 39 46 56 45 22 87 95mm² 4-core to 120mm² 4-core


Complete set :

A Pair of Hook Clamps Complete with One Set
Base U-Channel, M10 Thread Rods, Channel
Spring Nuts, Washers and Nuts.
Colour :

Black powder coated



 Diecast Aluminium Alloy Cable Cleats


Test
Temperature		 -5C to +100C Operation
Temperature		 -25C to +135C Ingress
protection		 IP 67


"WAI MING"

Diecast Aluminium Alloy Cable Cleats can be used Single or Double Stacked for Vertical or Horizontal and Other Surfaces Mounting.

CAT. NO. Dimensions (mm) Suitable for
Single & Multi-core Cable
A B C D E
MIN. MAX. MAX.
WMALCC150B 45 52 65 97 74 44 150mm² 4-core Armoured Cable
WMALCC185B 51 58 71 97 74 44 185mm² 4-core Armoured Cable
WMALCC240B 56 64 78 128 103 55 240mm² 4-core Armoured Cable
WMALCC300B 62 70 84 133 109 62 300mm² 4-core Armoured Cable
WMALCC400B 73 80 93 137 111 62 400mm² 4-core Armoured Cable


Complete set :

A Pair of Cleats Complete with One Set
Base U-channel, M10 Thread Rods, Channel
Spring Nuts, Washers and Nuts.
Colour :

Black Powder Coated



 Diecast Aluminium Alloy Cable Cleats


Test
Temperature		 -5C to +100C Operation
Temperature		 -25C to +135C Ingress
protection		 IP 67


"WAI MING"

Diecast Aluminium Alloy Cable Cleats can be used Single or Double Stacked for Vertical or Horizontal and Other Surfaces Mounting.


Medium Voltage (M.V.) 3.6kV - 36kV High Voltage (H.V.) 30kV - 275kV


CAT. NO. Dimensions (mm) Suitable for
Medium Voltage, High Voltage
Single & Multi-core Cable
A B C D E
MIN. MAX. MAX.
WMALCC-300MVB 83 88 98 147 123 61 300mm 3-core Armoured Cable (M.V.)
WMALCC-400MVB 90 95 108 162 137 61 400mm 3-core Armoured Cable (M.V.)
WMALCC-240HVB 100 105 120 163 138 70 240mm 3-core Armoured Cable (H.V.)
WMALCC-300HVB 110 115 132 173 148 70 300mm 3-core Armoured Cable (H.V.)
WMALCC-400HVB 120 125 146 183 158 70 400mm 3-core Armoured Cable (H.V.)
WMALCC-500HVB 130 135 154 200 170 70 500mm 3-core Armoured Cable (H.V.)


Complete set :

A Pair of Cleats Complete with One Set
Base U-channel, M10 (M.V.)/M12(H.V.) Thread Rods, Channel
Spring Nuts, Washers and Nuts.
Colour :

Black Powder Coated



 Diecast Aluminium Alloy Trefoil Cable Clamps


Test
Temperature		 -5C to +100C Operation
Temperature		 -25C to +135C Ingress
protection		 IP 67


"WAI MING"

Diecast Aluminium Alloy Trefoil Cable Clamps for Supporting 3 Cables in Trefoil with Single Bolt Top Fastening to Minimise Amount of the Space.

CAT. NO. Dimensions (mm) Suitable for Cable Sizes
A B C D E F 1-CORE XLPE/PVC 1-CORE XLPE/SWA/PVC
MIN. MAX. MAX.
WMALTC-41B 41 43 122 38 124 158 11 3x630mm 3x500mm
WMALTC-46B 46 48 133 38 132 165 11 3x800mm 3x630mm
WMALTC-51B 51 53 142 38 140 175 11 3x1000mm 3x800mm
WMALTC-59B 59 61 164 38 162 200 11 N/A 3X1000mm


Complete set :

A Set of Trefoil Clamp Only
Colour :

Black Powder Coated



 Diecast Aluminium Cable cleats with Rubber Pad


Test
Temperature		 -5C to +100C Operation
Temperature		 -25C to +135C Ingress
protection		 IP 67

"WAI MING"

Diecast Aluminium Cable Cleats with single bolt top fastening for cable diameters between 71mm to 99mm.

CAT. NO. DIMENSIONS (mm) Suitable for
Single & Multi-core Cable
A B C D E
min. MAX. max.
WMDA-71B 71 77 148 36 62 128 71mm to 77mm
WMDA-78B 78 84 151 36 62 130 78mm to 84mm
WMDA-85B 85 91 158 36 65 138 84mm to 91mm
WMDA-92B 92 99 172 36 65 153 92mm to 99mm


Complete Set :

A Set of Cable Cleat Only
Colour :

Black Powder Coated



 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Cable Hook Clamps




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Cable Hook Clamps




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Cable Cleats




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Cable Cleats




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of M.V. & H.V. Cable Cleats




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of M.V. & H.V. Cable Cleats

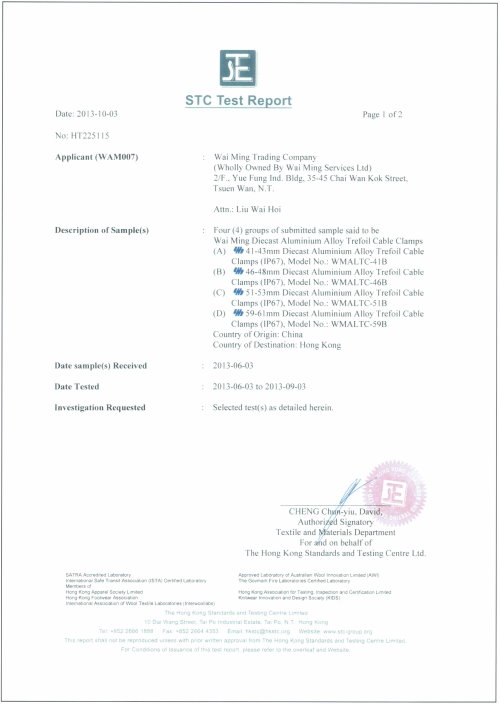

 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Trefoil Cable Clamps




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Trefoil Cable Clamps




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Aluminium Cable Cleats with Rubber Pad




 Hong Kong Standards and Testing Centre Ltd.
 Test/Reports for Loading Test of Aluminium Cable Cleats with Rubber Pad




 ETS-Testconsult Limited; Test Reports for Coating Mass Measurement of
 41mm x 41mm x 2.5mm HDG U-channel and
 Tensile Test of 41mm x 41mm x 2.5mm HDG U-channel




 ETS-Testconsult Limited; Test Reports for Coating Mass Measurement of
 41mm x 41mm x 2.5mm HDG U-channel and
 Tensile Test of 41mm x 41mm x 2.5mm HDG U-channel




 Delclaration of Test Results No.286/7283641




 Delclaration of Test Results No.286/7283641




 Delclaration of Test Results No.286/7283641




 Delclaration of Test Results No.286/7283641
