Earthing and Lightning Protection System

All Products are Manufactured in Accordance with ISO 9001, ISO 14001, BS 1400, BS 1432, BS 1433, BS 2874, BS 2898, BS 5714, BS 6651, BS 6425, BS 6746, BS 7430, BS 7671, CZ 112, BSEN 755, BSEN 1982, BSEN 6507, BSEN 7438, BSEN 10002, BSEN 13601, BSEN 60439-1, BSEN 60529, BSEN 62305, IEC 468, IEC 754 and UL 467 with Fault Level ASTA and BSI Test Certificates.

ISO 9001:2008
Registration No.:00109Q28985ROM/4300

ISO 9001:2008
Certificate No.:00109Q28985ROM/4300

ISO 9001:2008
CERTIFICATE NO.FM 53776

ISO 14001:2004
Certificate No.:CQC09E21306ROM/4300

Certificate No. 12519

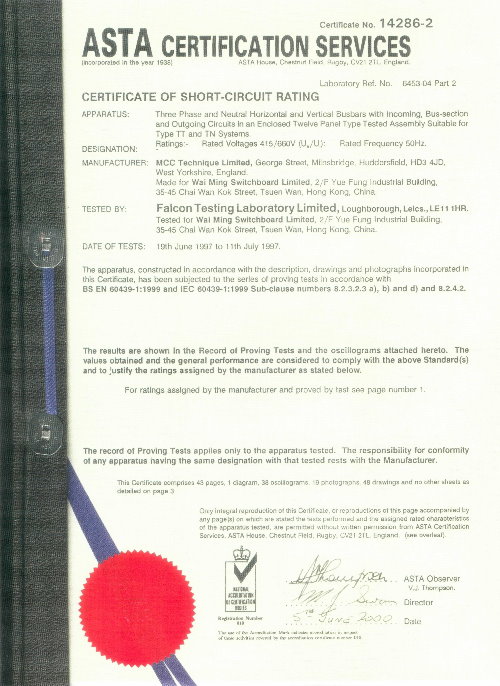

 ASTA Test Certificates to BSEN 60439-1:1999




'Euro Earth' Earthing and Lightning Protection System
Complying to BS 1400, BS 1432, BS 1433, BS 2874, BS 2898, BS 5714, BS 6651, BS 6425, BS 6746, BS 7430, BS 7671, CZ 112, BSEN 755, BSEN 1982, BSEN 6507, BSEN 7438, BSEN 10002, BSEN 13601, BSEN 60439-1, BSEN 60529, BSEN 62305, IEC 468, IEC 754 and UL 467.
Certified to ISO 9001:2008 & ISO 14001:2004 with Fault Level ASTA and BSI Test Certificates.
Suitable for Outdoor used (IP57)

Test
Temperature		 -5°C to +100°C
(Copper, Gunmetal)
-5°C to +90°C
(PVC, LSOH)		 Operation
Temperature		 -25°C to +200°C
(Copper, Gunmetal)
-25°C to +90°C
(PVC, LSOH)		 Ingress
Protection		 IP57

Bare Copper Tape; Made from High Conductivity Annealed Copper to BS 1432 and BSEN 13601 with ASTA & BSI Test Certificates Size Cat. No. Metres/Coil
25x3mm BACT 253 50
25x6mm BACT 256 50
50x6mm BACT 506 30

Tinned Copper Tape; Made from High Conductivity Annealed Copper to BS 1432 and BSEN 13601 with ASTA & BSI Test Certificates Size Cat. No. Metres/Coil
25x3mm TACT 253 50
25x6mm TACT 256 50
50x6mm TACT 506 30

PVC Sheathed Cu. Tape; Made from High Conductivity Annealed Copper to BS 1432 and BSEN 13601 (PVC Sheathed to BS 6746) with ASTA & BSI Test Certificates Size Cat. No. Metres/Coil
25x3mm PACT 253 50
25x6mm PACT 256 50
50x6mm PACT 506 30

LSF Sheathed Cu. Tape; Made from High Conductivity Annealed Copper to BS 1432 and BSEN 13601 (LSF Sheathed to BS 6425) with ASTA & BSI Test Certificates Size Cat. No. Metres/Coil
25x3mm FACT 253 50
25x6mm FACT 256 50
50x6mm FACT 506 30

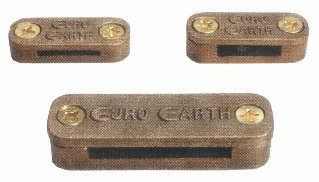

D.C. Tape Clips; Made from Gunmetal Ingot to BS 1400, LG2 and BSEN 1982 with BSI Test Certificates Size Cat. No. Qty/Box
25x3mm GDC 253 200
25x6mm GDC 256 200
50x6mm GDC 506 60

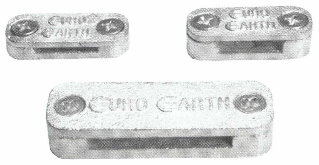

D.C. Tape Clips (Tinned); Made from Gunmetal Ingot to BS 1400, LG2 and BSEN 1982 with BSI Test Certificates Size Cat. No. Qty/Box
25x3mm TGDC 253 200
25x6mm TGDC 256 200
50x6mm TGDC 506 60

D.C. Clips for PVC/LSF Sheathed Copper Tape; Made from Gunmetal Ingot to BS 1400, LG2 and BSEN 1982 with BSI Test Certificates Size Cat. No. Qty/Box
25x3mm GPDC 253 200
25x6mm GPDC 256 200
50x6mm GPDC 506 60

Square Tape Clamps; Made from Gunmetal Ingot to BS 1400, LG2 and BSEN 1982 with BSI Test Certificates Size Cat. No. Qty/Box
25x3mm GSTC 253 60
25x6mm GSTC 256 60
50x6mm GSTC 506 10

Square Tape Clamps (Tinned); Made from Gunmetal Ingot to BS 1400, LG2 and BSEN 1982 with BSI Test Certificates Size Cat. No. Qty/Box
25x3mm TSTC 253 60
25x6mm TSTC 256 60
50x6mm TSTC 506 10

Bare Aluminium Tape; Made from Aluminium to BS 2898 and BSEN 755 Size Cat. No. Metres/Coil
25x3mm BAT 253 50

Aluminium D.C. Tape Clips; Made from Aluminium to BS 2898 and BSEN 755 Size Cat. No. Qty/Box
25x3mm ADC 253 200

Aluminium Square Tape Clamps; Made from Aluminium to BS 2898 and BSEN 755 Size Cat. No. Qty/Box
25x3mm ASTC 253 60

Non Metallic PVC Saddles for PVC Sheathed Copper Tape; Made from PVC to BS 6746 Size Cat. No. Qty/Box
25x3mm PDC 253 500
25x6mm PDC 256 500
50x6mm PDC 506 200

D.C. Tape Clips; Made from Naval Brass to BS 2874 and CZ 112 Size Cat. No. Qty/Box
25x3mm BDC 253 200
25x6mm BDC 256 200
50x6mm BDC 506 60

D.C. Tape Clips (Tinned); Made from Naval Brass to BS 2874 and CZ 112 Size Cat. No. Qty/Box
25x3mm TBDC 253 200
25x6mm TBDC 256 200
50x6mm TBDC 506 60

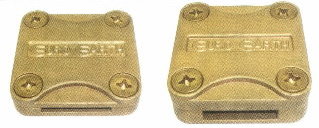

Square Tape Clamps; Made from Naval Brass to BS 2874 and CZ 112 Size Cat. No. Qty/Box
25x3mm BSTC 253 60
25x6mm BSTC 256 60
50x6mm BSTC 506 10

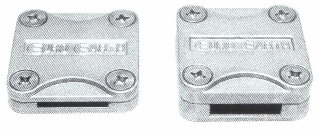

Square Tape Clamps (Tinned); Made from Naval Brass to BS 2874 and CZ 112 Size Cat. No. Qty/Box
25x3mm TBSTC 253 60
25x6mm TBSTC 256 60
50x6mm TBSTC 506 10



Tinned Copper Bars Made from High Conductivity Annealed Copper to BS 1422, BS 1433 and BSEN 13601 with BSI Test Certificates

Disconnecting Link Cat. No. Description Length (mm)
E-LINK Disconnecting Link 120

Standard Earth Bars Cat. No. Description Length (mm)
SE-BAR6 6 Way 450
SE-BAR8 8 Way 550
SE-BAR10 10 Way 650
SE-BAR12 12 Way 750
SE-BAR14 14 Way 850
SE-BAR16 16 Way 950
SE-BAR20 20 Way 1050

Earth Bars with Single Disconnect Links Cat. No. Description Length (mm)
EE-BAR6-1 6 Way 570
EE-BAR8-1 8 Way 670
EE-BAR10-1 10 Way 770
EE-BAR12-1 12 Way 870
EE-BAR14-1 14 Way 970
EE-BAR16-1 16 Way 1070
EE-BAR20-1 20 Way 1170

Earth Bars with Twin Disconnect Links Cat. No. Description Length (mm)
EE-BAR6-2 6 Way 690
EE-BAR8-2 8 Way 790
EE-BAR10-2 10 Way 890
EE-BAR12-2 12 Way 990
EE-BAR14-2 14 Way 1090
EE-BAR16-2 16 Way 1190
EE-BAR20-2 20 Way 1290



Grounding Plate; Made from Gunmetal Ingot to BS 1400, LG2 and BSEN 1982 with BSI Test Certificates Size Cat. No. Qty/Box
64x64x80mm GGP-16 40
64x64x80mm
Welded with Ø16 250mm Long Steel Rod Vertically		 GGP-16-V 10
64x64x80mm
Welded with Ø16 250mm Long Steel Rod Horizontally		 GGP-16-H 10

Bare Stranded Copper Conductor Soft; Made from High Quality Conductivity Annealed Copper to BS 6360 with BASEC Certificates Size Cat. No. Metres/Coil
6mm BCSW006 500
16mm BCSW016 500
25mm BCSW025 500
35mm BCSW035 500
50mm BCSW050 500
70mm BCSW070 500
95mm BCSW095 500
120mm BCSW120 500
150mm BCSW150 500
185mm BCSW185 500

Bare Stranded Copper Conductor Soft; Made from High Quality Conductivity Annealed Copper to BS 6360 with BASEC Certificates Size Cat. No. Metres/Coil
2.5mm GY002.5 500
4mm GY004 500
6mm GY006 500
16mm GY016 500
25mm GY025 500
35mm GY035 500
50mm GY050 500
70mm GY070 500
95mm GY095 500
120mm GY120 500
150mm GY150 500
185mm GY185 500
240mm GY240 500
300mm GY300 500

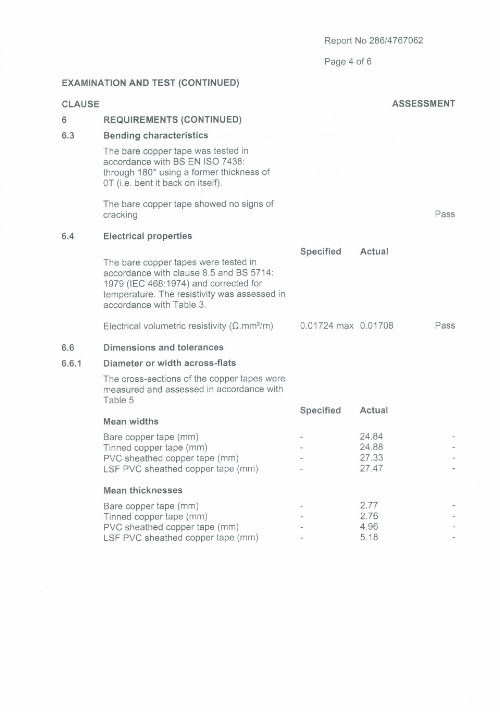

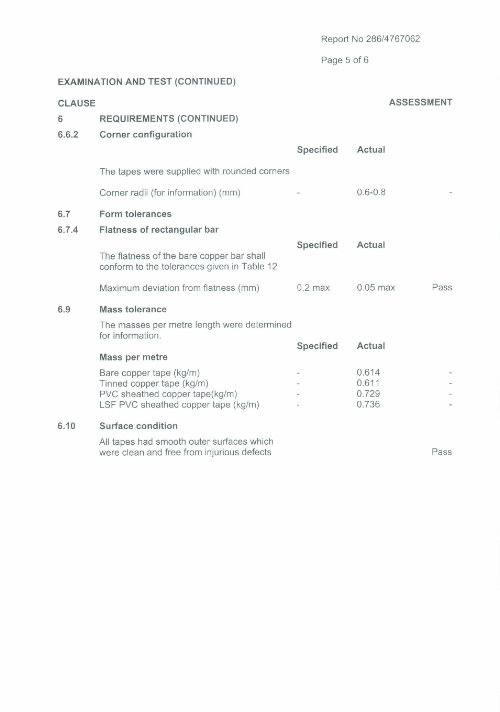

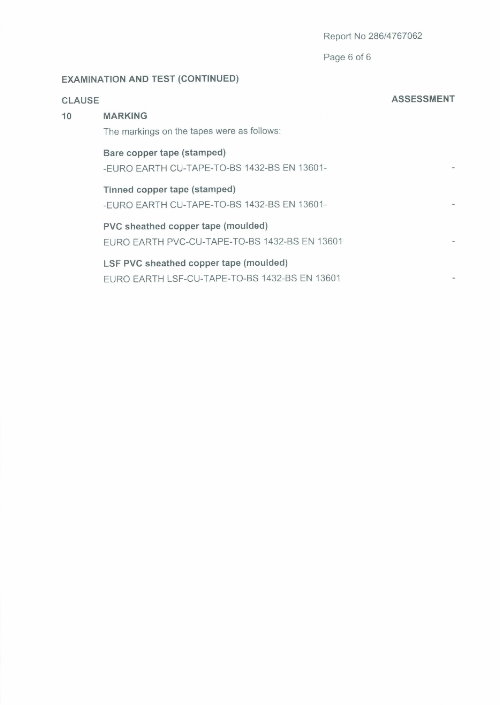

 BSI Test Report No. 286/4767062

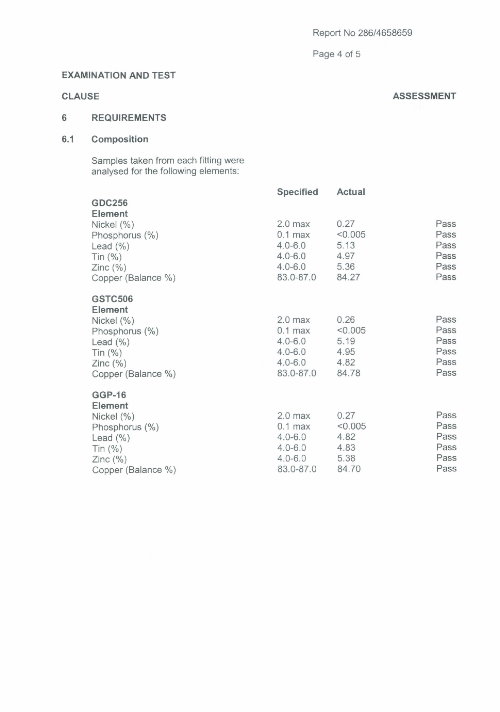

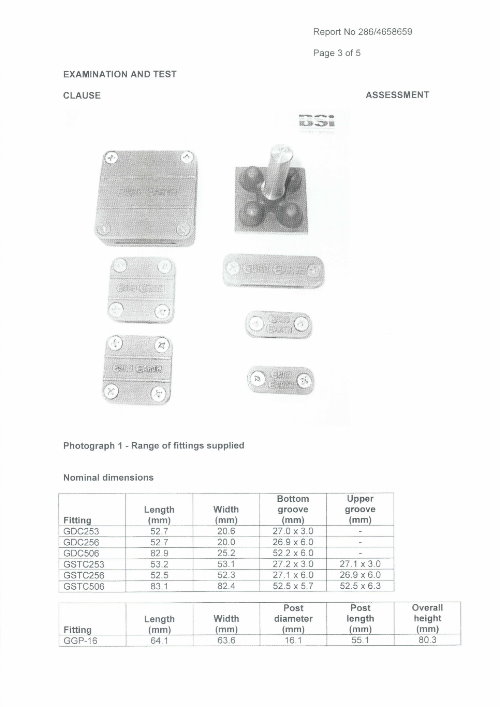

 BSI Test Report No. 286/4658659 Issue 2

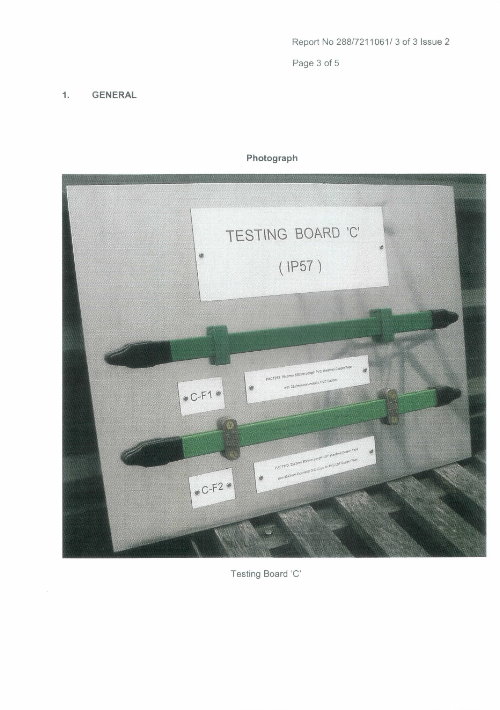

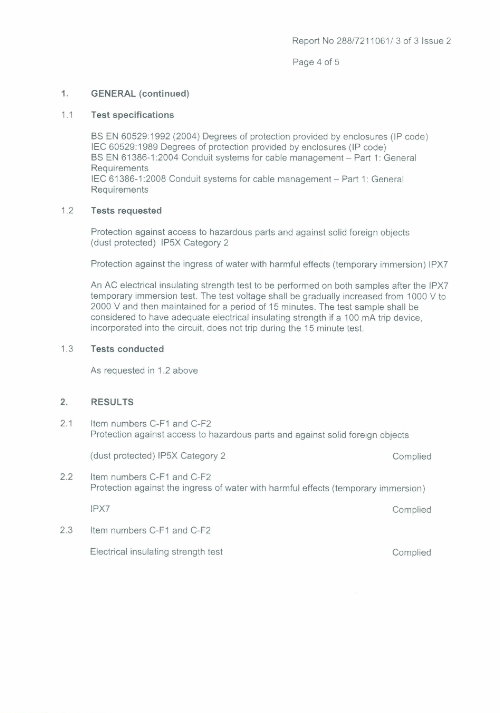

 BSI Test Report No. 288/7211061 / 3 of 3 Issue 2








 NDT Test Report to BS6651, BS7430 and UL467
